To install the extension

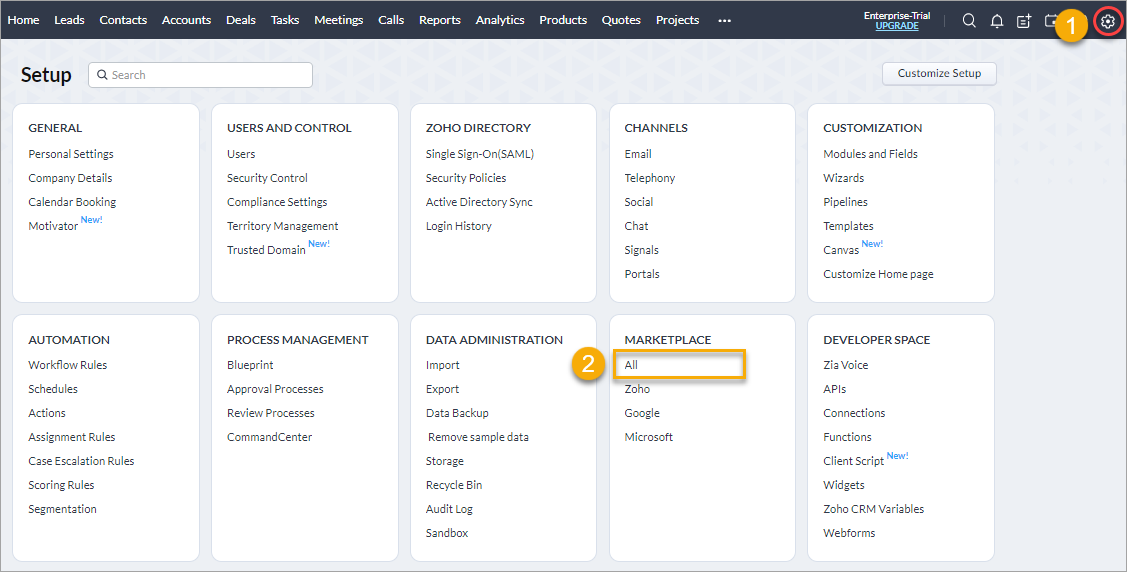

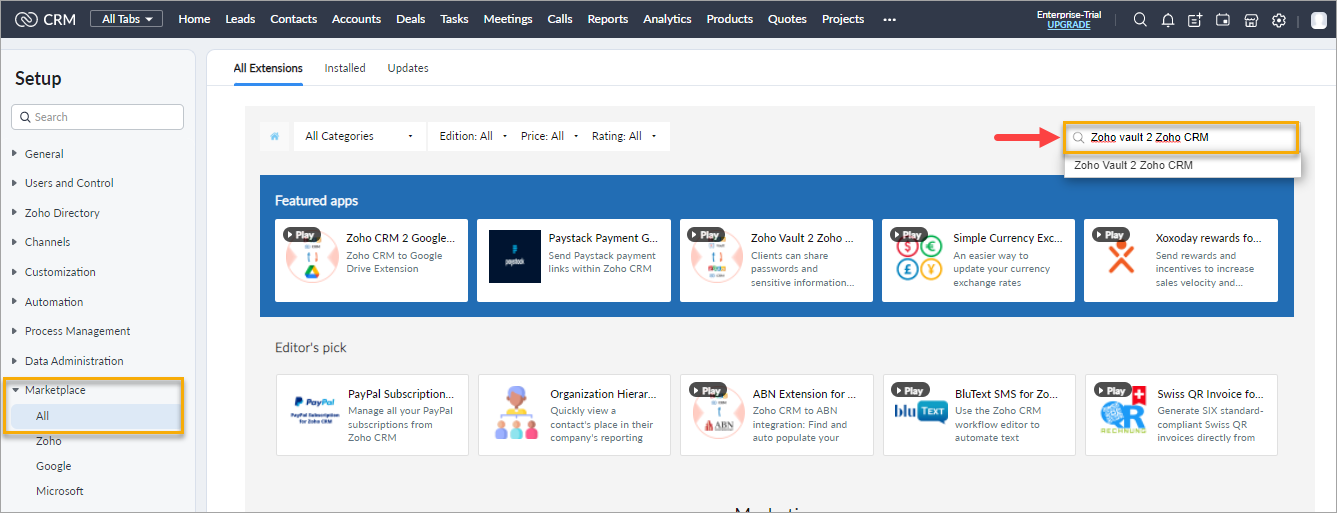

➢ In CRM, go to Settings -> MarketPlace -> All
Under this menu, you can find all Zoho CRM supported extensions and all your installed extensions nested under ALL
EXTENSIONS and INSTALLED EXTENSIONS respectively.

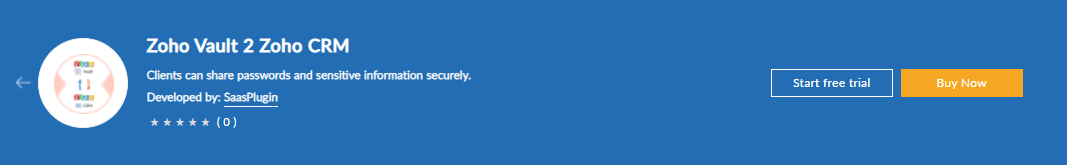

➢ Go to All Extensions, and browse for and click Zoho Vault 2 Zoho CRM.
The details about the extension will be available.
➢ You can go through a free trial or Buy the plugin directly -
In the following screen, check the “Allow marketplace vendors to contact me regarding product offers and promotions” and click Install.

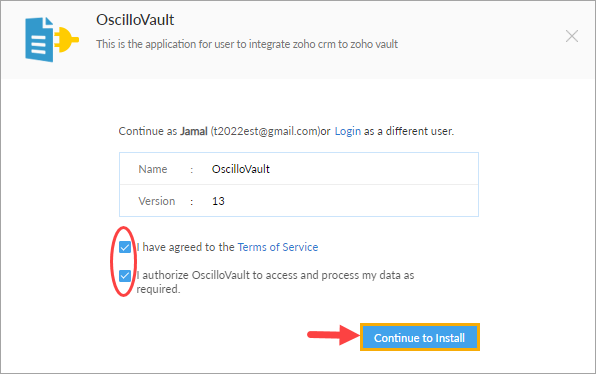

➢ Click Continue on the following page.

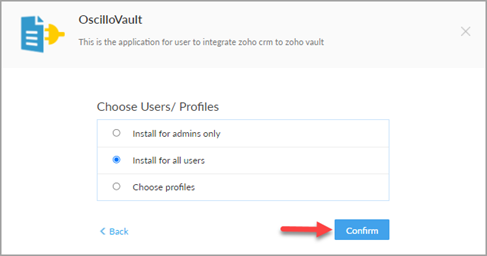

Click “Install for all users” and click “Confirm” on the following page.

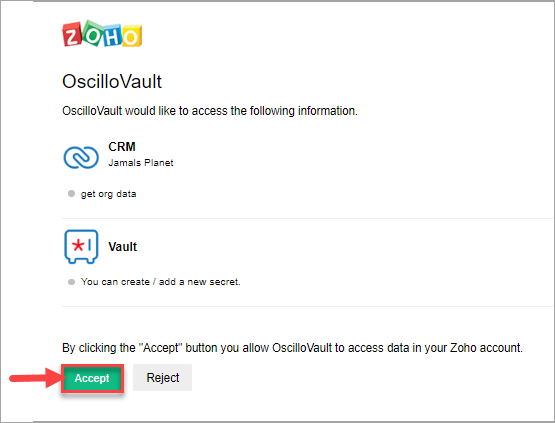

By clicking the "Accept" button you allow OscilloVault to access data in your Zoho account.

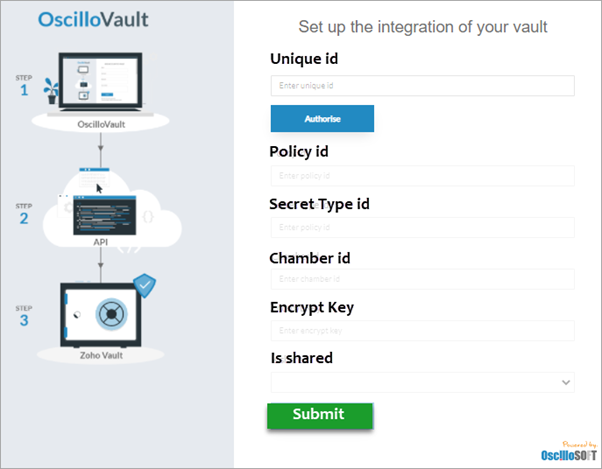

Once you click on the Accept button you will get the form where you have to fill-up all the fields.
Let’s see where you can get id values -
Unique ID

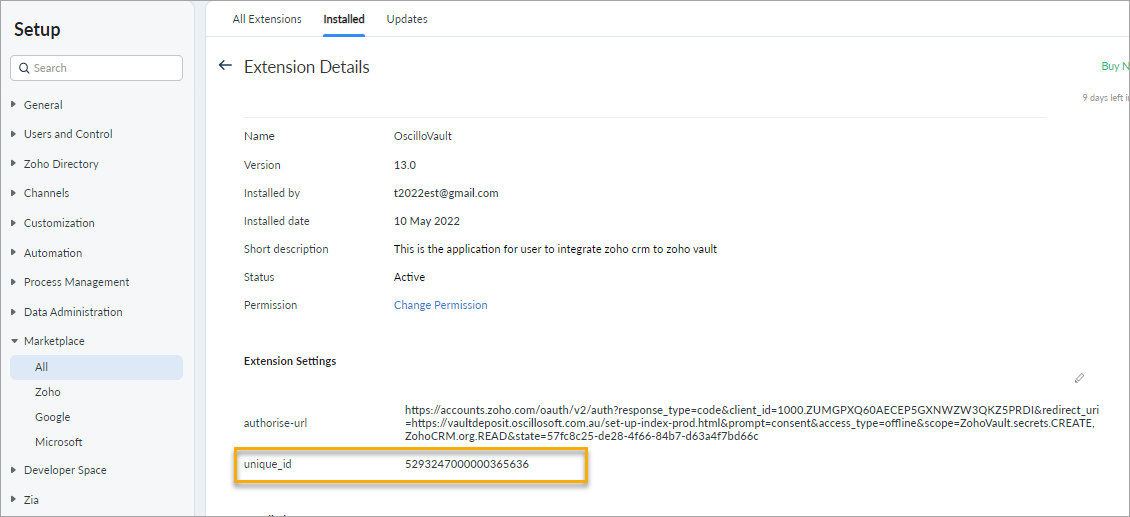

Go to Marketplace > All > Installed > Configure > Unique id
Get a Unique ID from here -
Encrypt Key

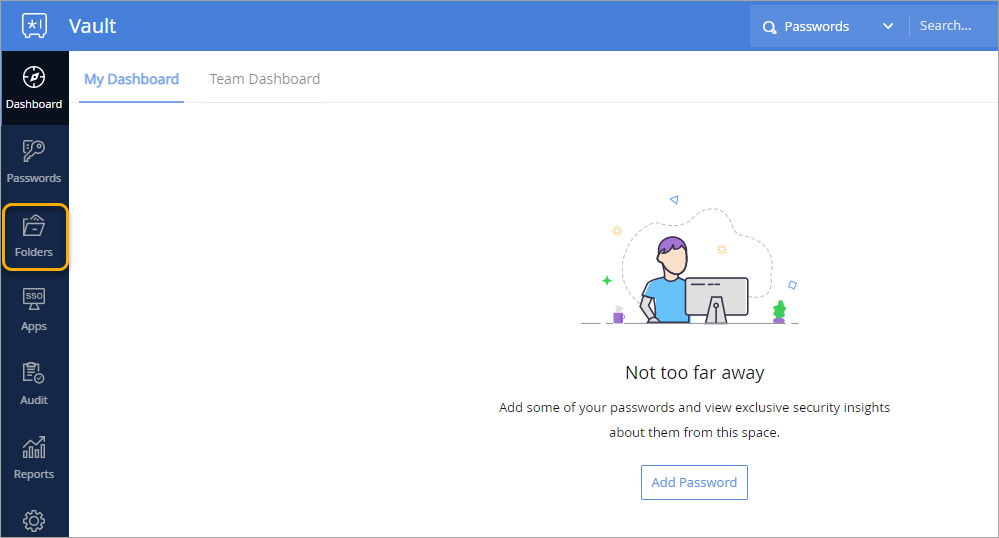

➢ To get the Encrypt Key you will need to login to your Zoho vault application, Select a folder (or create a folder) , and create a password. All the passwords shared to you with this plugin will be stored in this folder.
Fig 1.3: Password creating under a folder

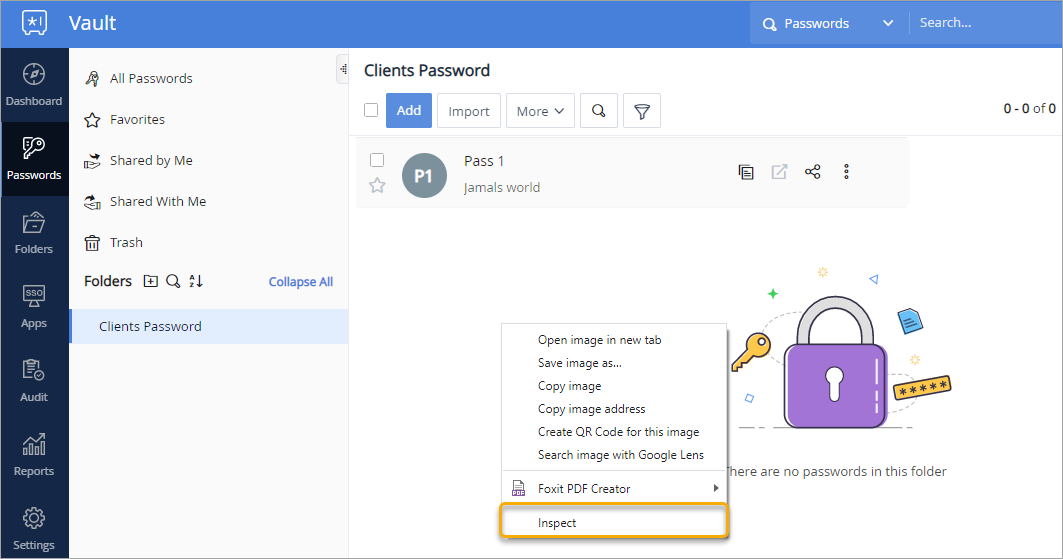

➢ You will then ‘right-click’ on the page and select the ‘Inspect’ option (alternatively ‘ctrl-shift-i’)
Fig 1.4: Inspect option
➢ Once the developer/Inspect mode is open follow the below instructions -
GoGo to Sources (top middle)
-> search for ‘ciphertext’ (ctrl+f).

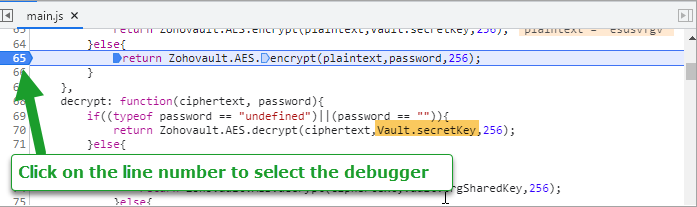

Now select the debugger and add a new password to load all the values successfully.
Once the debugger is selected, just hover the mouse on Vault.secretkey you can see the value. Now copy the value.

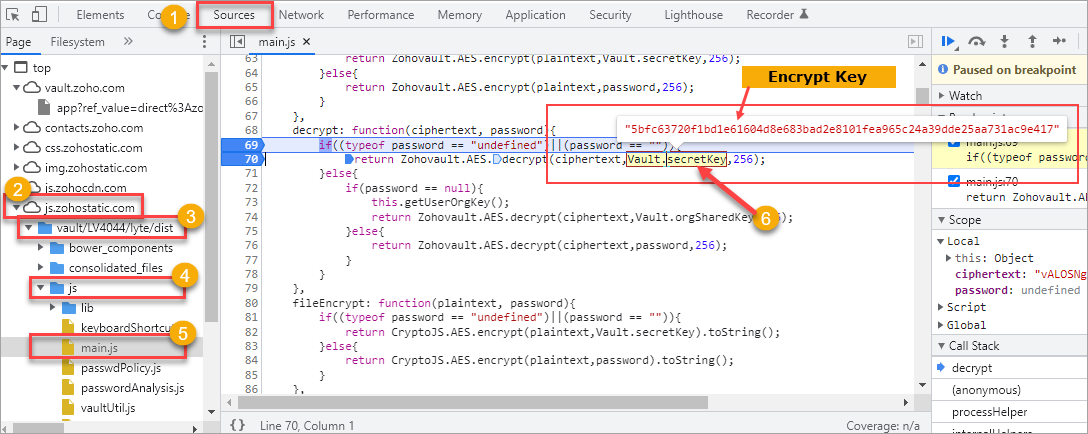

Fig 1.5: Inspect view
Once you are done with Encrypt key, please remove the debugger selector.

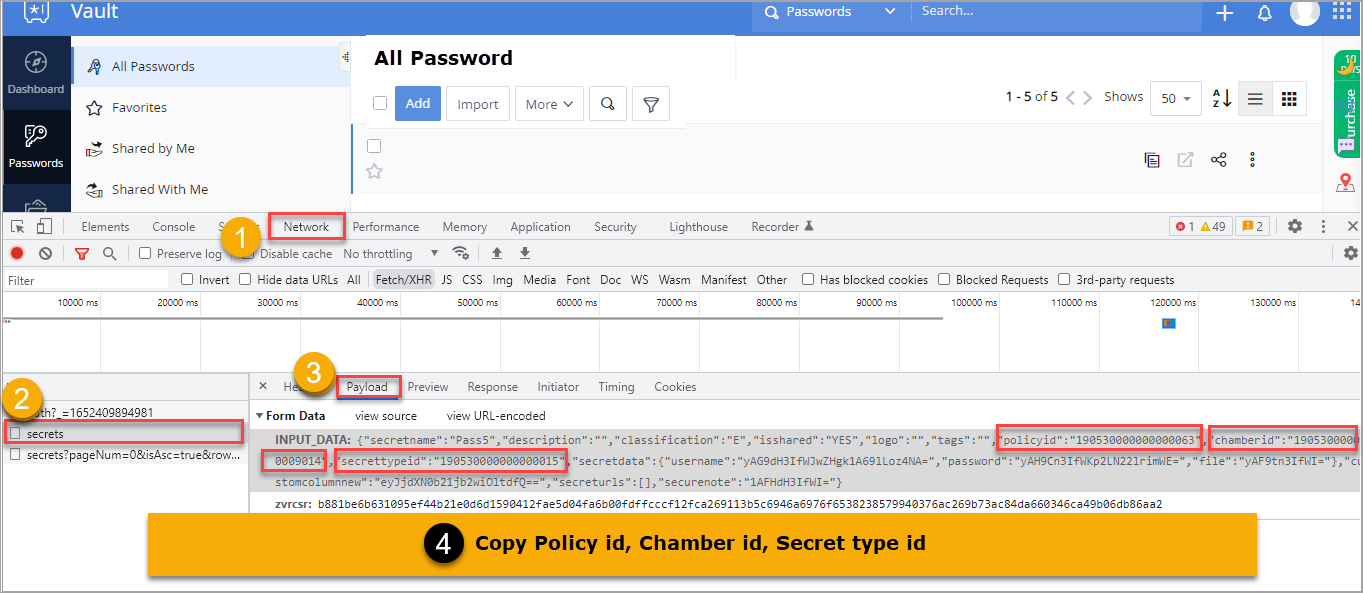

You will get Encrypt Key Policy id, Secret type id, and Chamber id from the Network section
Go to Network (right side of source option)
Fig 1.6: Network Secrets
➢ This data will need to be inputted in the respective fields in the Oscillovault form.
In the “Is Shared” field, make it Yes.

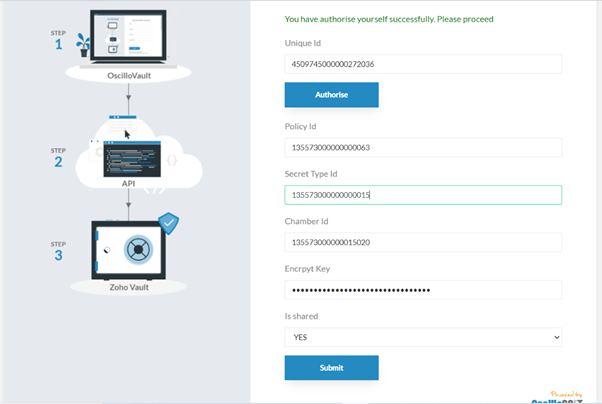

Fig 1.7: OscilloVault form for inputting data
➢ Once the data has been entered, then you will be able to ‘Submit’
All done. The Zoho Vault plugin is ready to use now.
